1.Portable full broadband jammer with effective frequencies ranging from 20MHz to 2500MHz.
2.Multiple interference source signal generation methods
Providing tailored solutions to actual needs in different frequency bands with  advanced interference signal modulation methods in order to improve efficiency and to ensure reliable and optimal result.
20-80MHz: utilizing modulated white noise interference model.
80-800MHz: utilizing direct digital synthesis (DDS) noise model.
800-2500MHz: utilizing direct digital waveform synthesis (DDWS) noise model.
3.Modular design of interference frequency bands
Providing flexibility in expansion and combination of various frequency bands to effect complete coverage of target frequencies
4.Integrated antenna design
Eliminating external antennas and increasing the device’s field portability.
5.Multiple fault-tolerant features
Input and output voltage and current protection.  Smart antenna control technology.  Preventing potential system and component damages caused by faults in antennas.
6.Rugged external casing design
MCT-2000’s external case is made by Pelican Products, USA.  The briefcase is made with high strength mixed resin material which renders the device impregnable to dust, water, shocks, corrosion, moisture, and explosives.  The device is suitable for deployment in extreme weathers and climates.

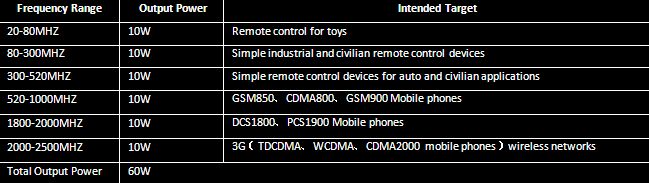

7.Frequencies, output power and intended targets

Note: Main target frequencies can be adjusted per continent and country.
8.Power Consumption: 300W
9.Interference methods: a combination of various modulation methods.
10.Built-in battery pack: 26V @ 12AH.
Continuous operating time at full band: 60 minutes.
Continuous operating time at 500MHz-2500Mhz: 120 minutes.
Continuous operating time at 20MHz-520Mhz: 120 minutes.
11.Dimensions (mm): 470 X 360 X 180
12.Weight: 17Kg
13.Operating ambient temperature: -30℃ to +60℃ Able to withstand extreme changes in temperature.
14.Interference radius:
20-520MHZ:      >= 40 meters for simple radio-controlled devices in open areas.
500-2500MHZ:  >= 30 meters for mobile phones in open areas.
                       >= 40 meters If target signal strength is <= -80dB
15.Cooling: forced air.

Power adaptor/charger and Carry Case
1.Input Voltage:  110-220VAC
2.Output Voltage:  24-28VDC
3.Output Current: 14.5A
4.Charging Voltage: DC25.9V 5A
5.Power consumption:  350W
6.Cooling: forced air.
7.Carry Case: Waterproof hard briefcase made by Pelican Products, USA
8.Dimension (mm): 430X320X160
9.Weight: 3 Kg
10．Operating ambient temperature: -30℃ to +60℃ Able to withstand extreme changes in temperature.
